File

In this section you will learn about Single and Multiple Files

Overview

To find the File component, type in "file" or scroll down

The file component is interactive as all inputs are, meaning you can click on the field upload a file and then download the existing file

Settings

There are many things you can set up in the file component settings (click on the input to access the settings menu on the right)

Connecting storage

Here you can connect one of our native integration storages, use Jet Admin's built-in storage, or connect your own using REST API.

Multipart Encoding

Jet allows for multipart file encoding so that you can upload files with more complex data structures. You can enable multipart encoding when configuring the HTTP request for your REST API. See more about REST API here.

Linking data

You can also reference dynamic values using the f formula modal or set up a static value (upload file)

Multiple Files

Let's build an example with multiple file pickers. Follow the steps,

1. Drag and Drop File Picker component

2. Choose Multiple Files

How to use File

There are many use cases for the File component, so here we'll review the most common ones:

Uploading to Jet Tables

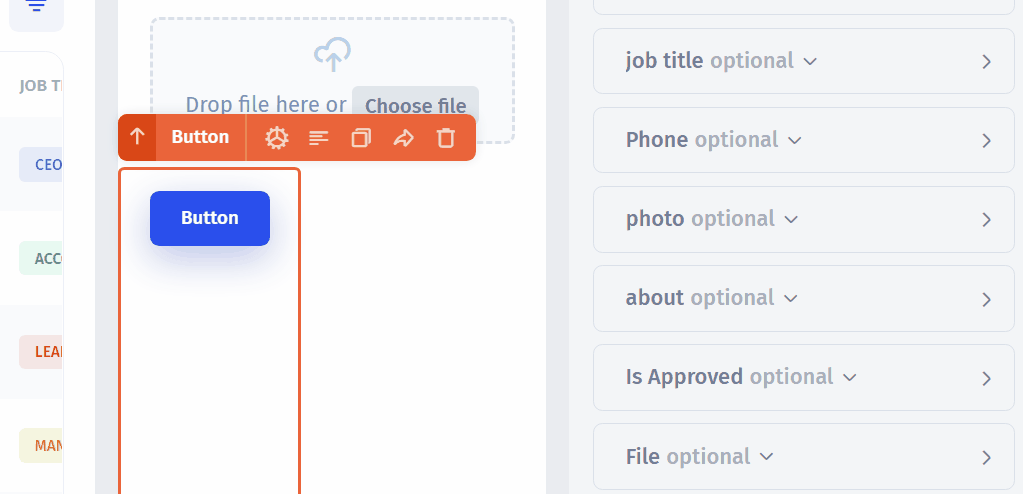

We'll need a button to execute the action to upload files to Jet Tables (or any other storage). In addition, we might need a table to select the record we'll upload the file onto. This table must have a column with the File field type.

Next, we need to tell the button where the file value will come from. For this, we'll reference the "value" attribute from the File filed we dropped on the canvas

In this regard, file is just another type of Input field so you can perform all the referencing and binding actions as you would with text or other fields

To do so, follow the steps:

1. Click on the File

2. Click on the Formula icon

3. Choose File

4. Choose Value

Now, the button will upload the file and link it to the record we selected in the table.

Displaying files

Now, if we want to display the file that is stored in our table, we'll need to follow the same process: go into the File component's settings and reference the file field from the selected row in the Table
